Description

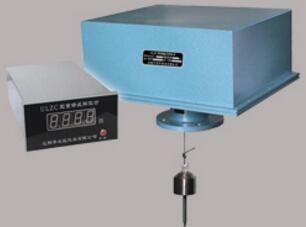

UZZ series hammer level meter uses micro-computer technology. It is simple, reliable and easy to install. It is used to measure powder, grain and block in the open container or sealing container. The instrument also has the following features:
It will display the value in four digitals and offer remote current output.
It has upper limit alarm and lower limit alarm.
User can do manual measurement.
User can arbitrarily set space measurement (additive count) or full-scale measurements (subtraction count).
Six lights to indicate the working condition
User can input the working parameter through keyboard.
Measure range：Maximum 60m
accuracy：±1% of reading；
±1.5% of reading±2
Detection rate：6～8m/min
Detection band：Stainless steel band
Heavy hammer：Galvanized iron chain，weight 5kg
Digital display：four digital， unit: M
Remote output：0～10mADC,load 0～1kΩ
4～20mADC,load 0～500Ω
Timing range：0.5min～83.3h
Upper limit alarm：Full scale setting，contact capacity：220VAC，1A(resistive load)
Lower limit alarm：Full scale setting，contact capacity：220VAC，1A(resistive load)
Ambient temperature：sensor：-25～＋55℃
Control display：0～＋45℃
Media temperature：-25～＋70℃；5～200℃
Power supply：sensor：three-phrase 380V，50Hz；single-phrase 220V，50Hz
Control display：220V，50Hz
Transmit distance between sensor and control display: maximum 1.5km
Connection cable： RVVP10×12/0.15 10 core PVC insulated wire
