Description

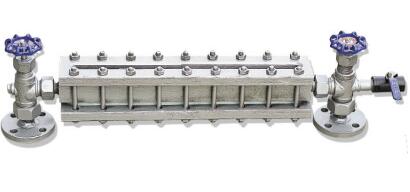

UB series glass plate level meter is used to indicate the height of liquid in the all kinds of containers.
Center distance of installation：L=300、 500、800、1100、1400、1700mm
Working pressure：4.0MPa
Working temperature：≤180℃
Auto-close valve pressure ：＞0.2MPa
Pressure of steam heating jacket：0.6MPa
Steam jacket joint：G1/2″external thread
material：carton steel，stainless steel
Ub flange：JB/T82.2-94DN20 PN4.0
