Description

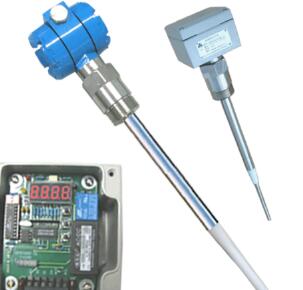

RF-9000，9200 series capacitance level controller uses advanced Ping Decatur company technology. It is an advanced controller at the moment. It can avoid the effection of adhesion layer so it can measure all the material such as liquid, solid conductive media and non-conductive media as well as corrosive media.
RF series includes integrated type and separated type. it also can be divided into ordinary type and explosion-proof type.
Power voltage：9000 series：220VAC±10％ 50Hz
9200series：24VDC
Power consumption：3W
Output relay：1A，220V AC resistive load or 5A，28V DC resistive load
alarm：Upper limit or lower limit
ambient temperature：－40～＋70℃
sensitivity：9000 series：1，4,10pF
9200 series：1，1.5，2，3，14，15pF
Delay time：9000 series：1，3，6s；
9200 series：1，2，4，7s
Explosion-proof grade：dia Ⅱ BT5□
RF－9 □ 0 0 □ □
|
9—series number |
□ |
0—probe type |
0 —enclosure level |
□ power voltage |
□ structure form |
|
1） 9000series 2） 9200series |
1）short probe 2）plate probe 4）food probe 5）standard probe 7）standard probe for insulated tube |
G）ordinary enclosure X)explosion-proof enclosure dia Ⅱ BT5 |
2）220V AC |
A）integrated type； B）integrated type，Roots extended； C）integrated type、top extended，rigidity connection； D）integrated type、top extended，flexible connection； E）separated type； F）separated type，Roots extended； G）separated type，top extended，rigidity connection； H）separated type，top extended，flexible connection； |
