Description

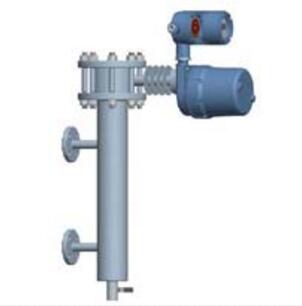

UTD-3010 Electric Float Level Interface Transmitter, have the same quality of fisher 3010 but much cheaper than fisher 3010. UTD-3010 is consisted of 3010 intelligent level transmitter and 00 series float level sensor. The 3010 intelligent level transmitter is imported from FISHER Company and the float level sensor is made by our factory. It can be used to measure level, interface or liquid gravity and output current signal.
UTD-3010 series level transmitter is 24v DC power supply. It can LCD display the analog, process level, process temperature and so on.
Output signal：4～20mADC
Linear of header（proportion＝1）：±0.25%FS
hysteresis：±0.2%FS
the performance of the whole instrument（proportion＝1）：
accuracy：±0.75%FS
hysteresis：0.4%FS
Weight of standard float
General type：508㎝3 0.95㎏
High-temperature type: 638㎝3 1.00㎏
Measure range：500，800，1200，1600，2000mm
Media proportion：0.4～1.0 g/㎝3
Minimum proportion Difference：0.1（standard float）（g/㎝3）
Working pressure：
External float：6.3，16Mpa
Internal float top：6.3Mpa
Internal float side：4Mpa
Flameproof Instrumentation：explosion-proof level ExiaⅡCT6
Intrinsic safety instrument：explosion-proof level ExiaⅡCT6
Dust explosion-proof instrument：explosion-proof level DIP DT T13
Media temperature：ordinary type 150℃，high temperature type 350℃
