Description

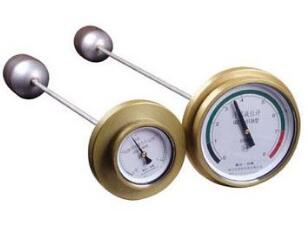

UQZ series float level gauge is used to open a direct indication of various liquid level or pressure vessel pointer instrument . Instrumentation and industrial equipment on the common gauge glasses compared to it is not afraid of rupture , showing the value clearer , especially for the role of the glass wall has a viscosity of the oil -based liquid medium or a direct indication of harmful toxic media.Meter are purely mechanical structure , so in the explosive areas of work , intrinsically safe .UQZ series float level gauge for the top -mounted instrument that can be used underground tank level indicator or oil tanks and other containers.UQZ series type instrument NA ordinary stainless steel has a strong corrosive effect of the medium .UQZ series type instrument does not apply to brass , aluminum , stainless steel and other materials have a strong corrosive effect of the medium .
Accuracy: UQZ-1 type：2 level
UQZ-2 type：2.5 level
Environment temperature: -40～＋55℃ 1type ，-25～＋55℃ 2type
Media temperature: ≤120℃
Medium type: UQZ-1 type：top-mounted，flange connection
UQZ-2 type：side-mounted，flange connection
|
Model |
Medium density g/cm3 |
Range m |
Measuring type |
Media pressure Mpa |
|
|
UQZ-1-0001 |
≥0.7 |
1 |
Full scale |
≤1.6 |
Float |
|
UQZ-1-0002 |
1.5 |
Ø126 |
|||
|
UQZ-1-0003 |
2 |
||||
|
UQZ-1-0004 |
2.5 |
||||
|
UQZ-1-0011 |
≥0.4 |
1 |
Ø200 |
||
|
UQZ-1-0012 |
1.5 |
||||
|
UQZ-1-0013 |
2 |
||||
|
UQZ-1-0014 |
2.5 |
||||
|
UQZ-1-0101 |
≥0.7 |
1 |
Porosity |
Ø126 |
|
|
UQZ-1-0102 |
1.5 |
||||
|
UQZ-1-0103 |
2 |
||||
|
UQZ-1-0104 |
2.5 |
||||
|
UQZ-1-0111 |
≥0.4 |
1 |
Ø200 |
||
|
UQZ-1-0112 |
1.5 |
||||
|
UQZ-1-0113 |
2 |
||||
|
UQZ-1-0114 |
2.5 |
||||
|
UQZ-2-0001 |
≥0.45 |
1 |
Full scale |
≤1.8 |
Ø90 |
|
UQZ-2-0002 |
1.5 |
||||
|
UQZ-2-0003 |
2 |
||||
|
UQZ-2-0011 |
≥0.7 |
1 |
≤2.5 |
Ø90 |
|
|
UQZ-2-0012 |
1.5 |
||||
|
UQZ-2-0013 |
2 |
||||
|
UQZ-2-0021 |
1 |
||||
|
UQZ-2-0022 |
1.5 |
||||
|
UQZ-2-0023 |
2 |
||||
