Description

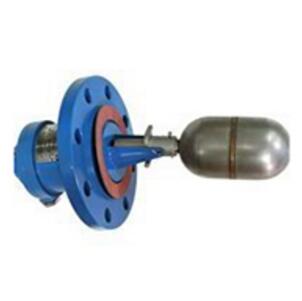

UQK series float liquid level controller, used for liquid level control of all kinds of containers, when liquid level reach upper, lower switch, controller contact produce on-off switch signal
Controller unsuitable for corrosive media to brass, stainless steel, etc
Structure principle
UQK series float liquid level controller, made up of isolated float group and contact group
|
Model and name |
Explosion-proof level |
Medium pressure MPa |
Medium temperature℃ |
Control range mm |
Adjustment |
Installation |
Power and contact volume |
|
UQK- 01/01G float liquid level controller |
|
1 |
150 |
≤14 |
Not adjustable |
Horizontal |
220VAC 200W 100VDC 150W |
|
UQK-02/02G float liquid level controller |
|
1 |
150 |
25～550 |
Adjustable with class |
Horizontal |
|
|
UQK-03/03G float liquid level controller |
|
1 |
150 |
8～1000 |
Adjustable without class |
Vertical |
