Description

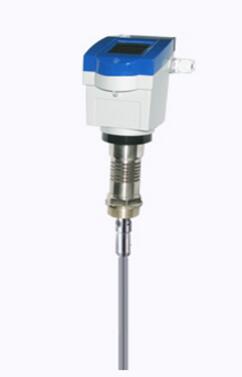

GDGW series guide wave radar level meter, Use advanced microprocessor and special EchoDiscovery echoes treatment technology, can be used in any complex conditions
Many process connection types and detection components, make GDGW5X series guide wave radar level gauge suitable for any complex conditions. Like: high temperature, high pressure and small dielectric constant mediums
Use pulse work type, low transmit power, can be mounted in any metal, non-metallurgy containers, no harmful to human body and environment
Medium: liquid, solid, massive, particles. Dust
Container capacity
Space conditions: foam, steam, dust,. Hanging materials, water vapor
Container information
Contain shape: flat top, arch, cone,. Horizontal
Connection
Thread （G3/4A, 3/4NPT, G1A, G1AM105X2, G11/2A, 11/2NPT, G2A
Power supply: 220V AC, two-wiring 24V DC, three-wiring 24V DC, four-wiring 24V DC
Output: 4…20MA, HART, Profibus-PA
